Basic Boat Info
Dimensions
Engines / Speed
- Make: MTU
- Model: 16V2000 M86
- Fuel: Diesel
- Engine Power: 2,200hp
- Type: Inboard
- Propeller Type: 5 Blade
- Engine Location: Port
- Drive Type: Direct
- Year: 2018
- Engine Hours: 1,560
- Make: MTU
- Model: 16V2000 M86
- Fuel: Diesel
- Engine Power: 2,200hp
- Type: Inboard
- Propeller Type: 5 Blade
- Engine Location: Starboard
- Drive Type: Direct
- Year: 2018
- Engine Hours: 1,560
Tanks
Other
Contact
Office
Avda. Ingeniero Gabriel Roca 20
Puerto de Andratx, Mallorca, ES, 07157
Tel:+34 618 602 840
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

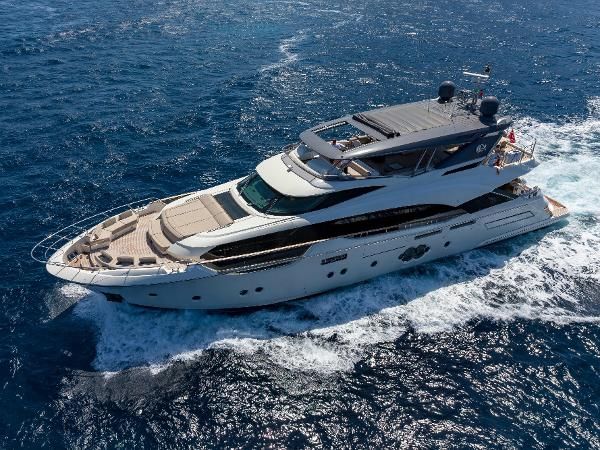

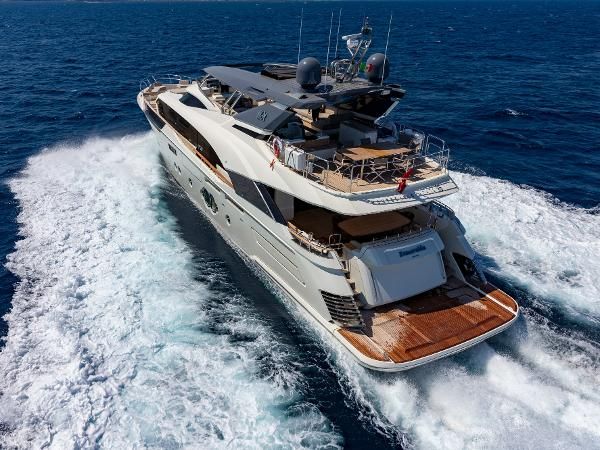

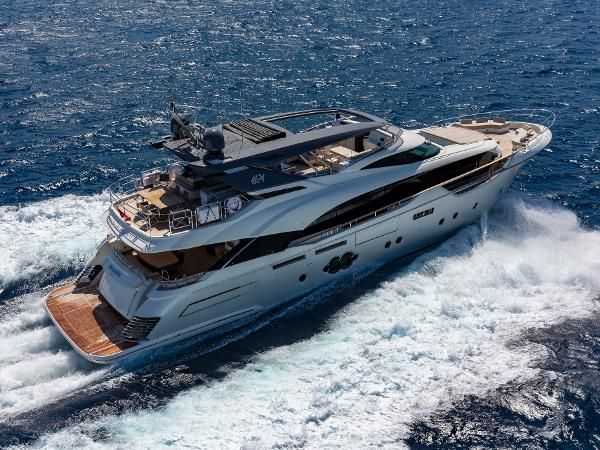

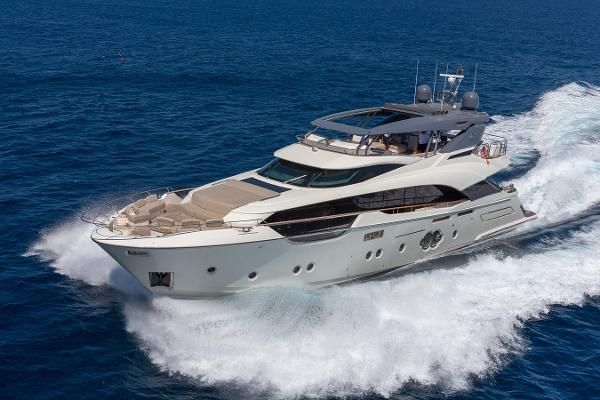

MAIN CHARACTERISTICS
Type of hull: Planing
Model: MCY 96
Builder: Monte Carlo Yachts
Naval architect: Monte Carlo Yachts
Interior designer: Nuvolari Lenard
Exterior designer: Nuvolari Lenard
Year: 2018
Refit: 2020
Flag: Malta
Registry: Commercial
Classification: RINA
Hull material: Carbon Composite
Superstructure material: GRP
DIMENSIONS
LOA: 29.5m - 96ft
LWL: 23.98m - 79ft
Beam: 6.94m - 23ft
Draft: 2.1m - 6ft
Air draft: 9.2m - 30ft
Gross Tonnage: 119
Net Tonnage: 119
Displacement (full): 110 T
Displacement (half): 98 T
SPEED / RANGE
Cruising: 20 knt - 650 nm
Max: 24 knt - 514 nm
Eco: 10 knt - 1800 nm
TANKAGES
Fuel: 18,000 L - 2906 US gal (GRP)
Fresh water: 1650 L - 436 US gal (GRP)
Grey water: 1000 L - 264 US gal (GRP)
Black water: 600 L - 158 US gal (GRP)
Dirty oil: 100 L - 26 US gal (stainless steel)
MECHANICAL
Engines: 2x MTU 16V 2200HP M86 Diesel - 1559 Hours (Nov 2022)
Generators: 2x 45Kw Kholer 400V AC, 50Hz - 3730 Hours (Nov 2022)
Bow thruster: Hydraulic, 40HP, Sidepower SH550
Stern thruster: Hydraulic, 40HP, Sidepower SH550
Stabilizers: Anchor & underway CMC SE80-SE120
Trim system (Fast yacht): Electric
Gearbox: ZF 3060V 10°V
Shaft: Aquamet 22, 105mm
Propellers: 5xBlades NiBAl-Alloy
Steering system: Power-assisted, Reverse Gear Electronic
Electrical: ASEA System 110/220V 50/60Hz
Rudder: AISI 316 Steel
Shore power: 125A 2x cables
Batteries: 2x 225Amp 12V, 15x 160Amp 12V, 4x 130Amp 12V (New 2021/2022)
Chargers: 2x24V 80Amp, 4x24V 30Amp, 1x12V 35Amp
Inverters: 110V / 220V
Transformer: ASEA for US/EU 75Kw, in 170-520V AC 40-75Hz, ou 230/400V 50Hz
Oil water separator: Alfa Laval MIB 303
Sewage treatment: HAMANN HL-CONT0125, 450L, IMO standard
Flushing system: Tecma Electrical
Fuel treatment: Alfa Laval MIB 303, 760L/h
Air conditioning: Tropical option Reverse cycle Climma® (New 2021)
Water maker: 1x Searecovery 280L/h
Boiler: QUICK 2x 80L, QUICK 1x 160L
Air compressor: CLIMMA CWS DC130
Bilge pump: 6x 24V auto
Bilge alarms system: Level and sound indicator + repeater
NAVIGATION EQUIPMENT
ECDIS: Raymarine electronic plotter
AIS: Raymarine AIS 650
Auto pilot: Raymarine P70R
Gyro compass: Raymarine
Magnetic compass: Ritchie F-83
Radars: Raymarine
GPS: 2x screens 15” Raymarine GS165
Navtex: JRC NCR-333
Echo sounder: Raymarine
Depth sounder: Raymarine DST800 Depth
Control panel: Boning AHD 1119GS 19”
Anemometer: Raymarine
VHF: Furuno FM-8900S
SART: RIKS 701
EPIRB: GMDSS Cat1 MT403FF-e999J
SAT-C: Furuno Felcom18
SAFETY EQUIPMENT
Liferaft: 3x DeepSea SOLAS B, 10pax each
Lifejacket: 24x SOLAS adult, 4x Children SOLAS
Lifering: 4
Flares: 4x para, 4x red handheld, 2x Orange Smoke
Fixed Fire extinguisher: Engine room FM200 with alarms and auto shutdown
Handheld Fire extinguisher: 18x 1Kg powder, 1x 9L Foam, 3x 4.5Kg Powder
Fire blanket: 1x In galley
Fire pumps: Gianneschi 150L/minutes
Smoke detectors: In every location
Heat detector: Galley
Fire damper: In garage
DECK EQUIPMENT
Anchors: 2x 136Kg PTW, steel, Duplex®
Anchor chains: 2x 150m x14mm
Windlass: 2x electric 3Kw 400V AC, Maxwell 4500
Winch: 2x 3Kw 24V electric, Maxwell 4500
Passerelle: Opacmare 150kg SWL
Mooring lines: 5x 20mx24mm, 1x 25mx24mm
Cleats: 12x Stainless Steel
Fenders: 8x F7 with MCY covers (380mmx1040mm), 2x A4 with MCY covers (550mmx710mm)
Paint: Gelcoat white superstructure, Pearl white hull, Grey domes and side mast supports, Grey carbon fiber T-Top
AUDIO / VIDEO EQUIPMENT
TV: Sat KVH TV8
Control System: Boning
CCTV: 2x in Engine room, 1x in control room, 1x cockpit aft, 1x swimming platform
4G/5G antennas: Digital Yacht 4G connect
Sound: Sonos throughout the yacht
GALLEY / LAUNDRY APPLIANCES
Fridges: Miele K37473 ID 300L
Freezer: MIELE FNS37402I 200L
Microwave: SHARP R200BKW, 800W
Dishwasher: MIELE JUBILEE SC
Washing machine: MIELE WMH122 WPS 9Kg
Dryer: MIELE WMH122 WPS
Wine Cellar: MIELE KWT6321UG
Oven: MIELE H6290B
Hobs: Induction Miele KM 6340, 76cmx50cm, 7.4Kw, 230V 50-60Hz
Ice Machine: 2x Vitrifrigo
Coffee machine: 2x Nespresso Delonghi
TENDER & TOYS
Tender: Williams jet 445 110HP, hydraulic swim platform (1600Kg max load)
Seabobs: 2x FS5
3x Paddleboards
1x Kayak + 1x Wakeboard
New Hull Paint by Monte Carlo (2021)
Superstructure Polished (2021)
MTU engines yearly maintenance
Generator yearly maintenance
Water cut bearings changed in 2021
Antifouling spray every year
Packing glands changed 2021
New electrical engine for windlass 2021
Shaft & propellers inspected in 2021
Stabilizers inspected in 2021
The 2021 yard maintenance happened at the Monte Carlo Yachts facility in Montefalcone, Italy and was done for the majority by the builder workforce.
